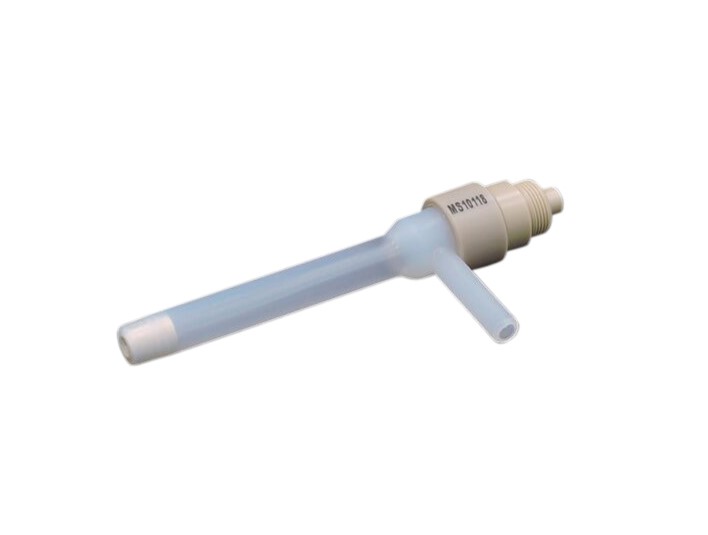

MassNeb Nebulizer, flow rates from 0.05 to 0.4 ml/min.

Part Number: LK6-1510025

€1,000 Excl. VAT

Cross reference number Ingeniatrics : NB1510025

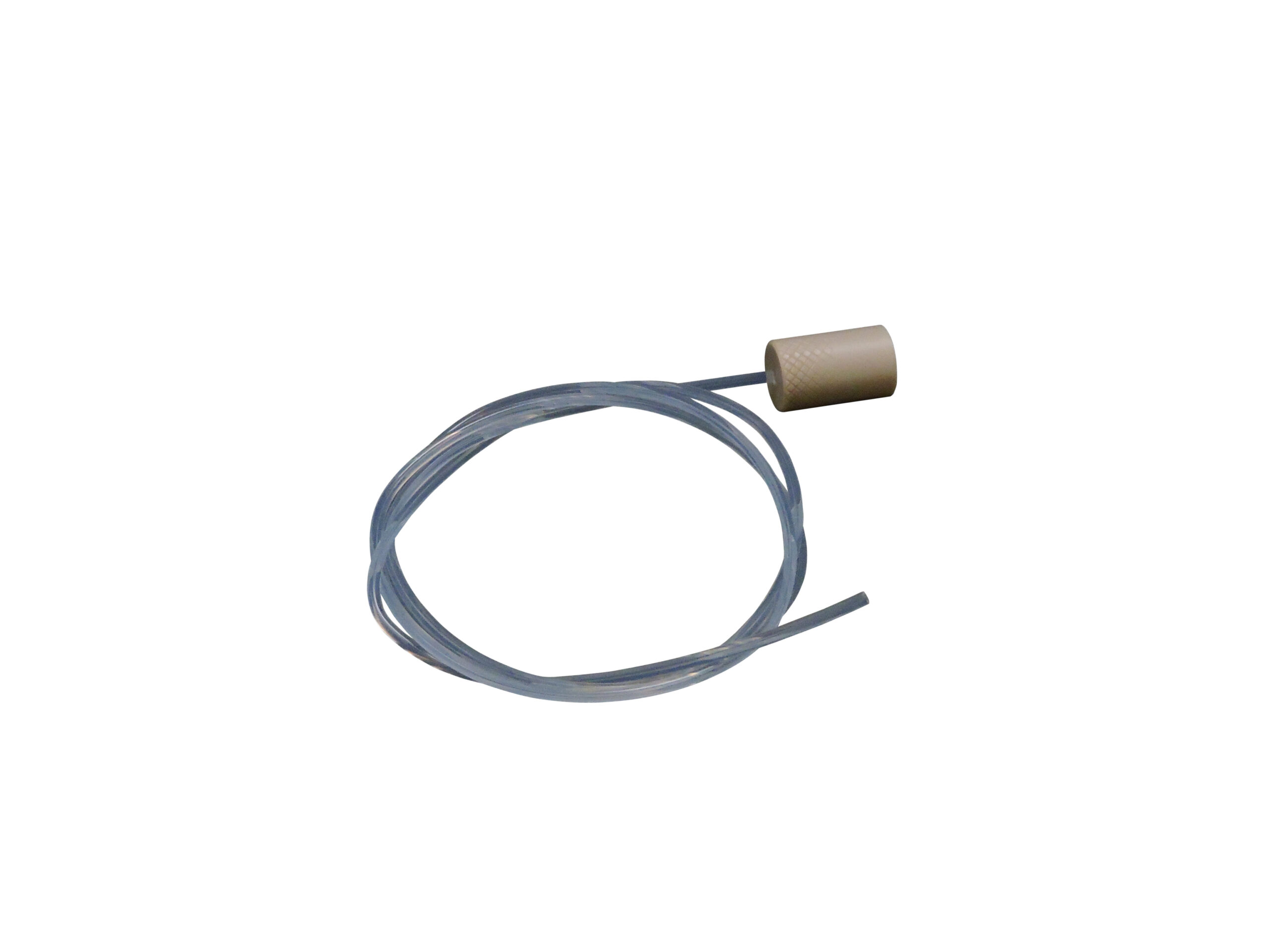

MS Connector 0,10mm :

MS Connector 0,25mm :

MS Connector 0,50mm :

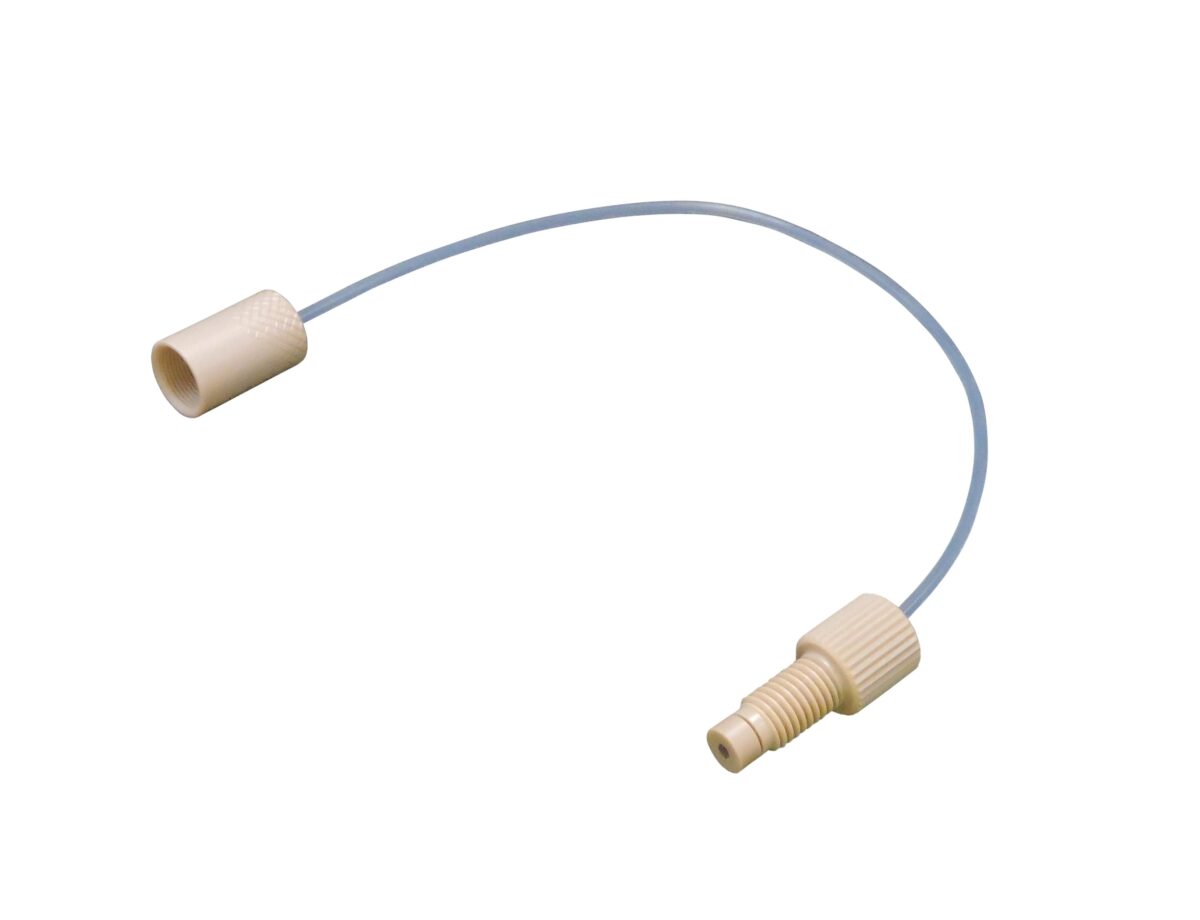

MS Connector 0,25mm AVS 28-1/4″:

MS Connector 0,50mm AVS 28-1/4″ :

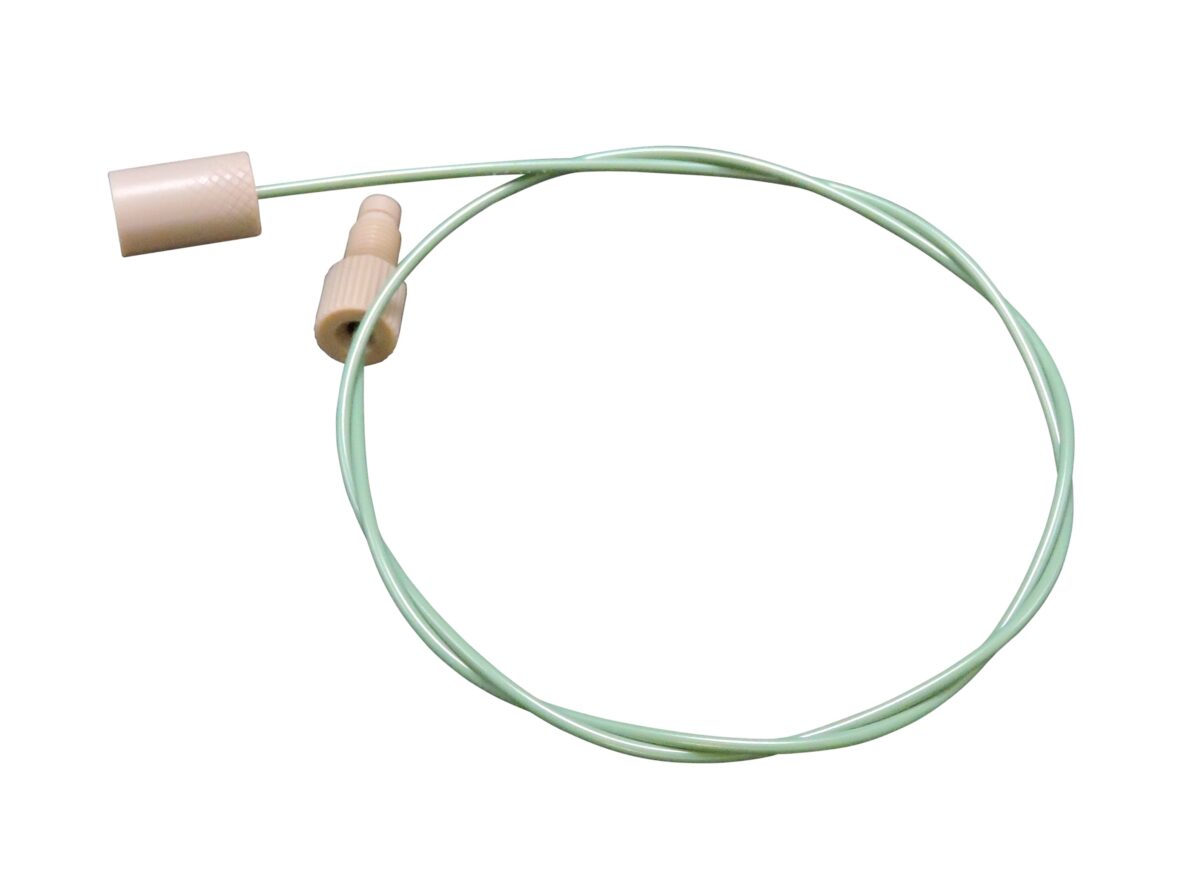

MS Especiation Connector 0,75mm :

MS Especiation Connector 0,05mm :

.

Please visit our Single Element Standards List

.

Click me for your Custom Blend inquiry

(alternative nebulizer to the OneNeb nebulizer)

Compare
Add to wishlist
Part Number: LK6-1510025 Categories: , , , , , , , , , , , , , , , , , Tag:
Description

Specially designed to improve the precision and sensitivity of ICP- MS techniques. Same robustness and durability as all other Ingeniatrics nebulizers. It handles flow rates from 0.05 to 0.4 ml/min. (alternative nebulizer to the OneNeb nebulizer)

SPECIFICATIONS:

Gas Connector: Quick release tube 4mm OD
Material: PFA, ETFE, PTFE, PEEK and LCP
UNSPSC Code: 41113000
Chemical Compatibility: Aqueous, HF and Organic solvents
TDS Handling Capability: 100 g/L
Sample Flow Rate: 0.05-0.4 ml/min [best with 0.2ml/min]
Argon Flow Rate: 0.75L/min
Pressure range: 150 kPa
Spray Chamber Compatibility: Nebulizer body 6mm OD (fits most chambers)



Package contents:

MassNeb Nebulizer
Sample capillary connector (1/16″ OD) with PFA tubing
Quick release connector for nebulizer gas inlet (4mm)
4mm black rigid gas tube with clamp
Conical sample line adapter (4 parts) for peristaltic pump (1/16″ tubing to 0.5-0.8 mm ID)
